Gasket Information
Gaskets are mechanical seals that fill the space between two or more mating surfaces, generally to prevent leakage from or into the joined objects while under compression. They play a crucial role in many industries, ensuring the integrity and safety of systems ranging from plumbing to aerospace.
Types of Gaskets
There are numerous types of gaskets, each designed for specific applications and operating conditions. The choice of gasket material and design depends on factors such as temperature, pressure, chemical compatibility, and the nature of the fluid being sealed.
Sheet Gaskets
Sheet gaskets are typically cut from a larger sheet of material. They are versatile and widely used in many industries. Common materials include rubber, cork, and compressed non-asbestos fibre (CNAF).
Spiral Wound Gaskets
Spiral wound gaskets consist of a metallic winding material and a soft filler material. This construction provides excellent resilience and is suitable for high-pressure and high-temperature applications.
Ring Type Joint (RTJ) Gaskets
RTJ gaskets are heavy-duty, high-integrity seals used in high-pressure and high-temperature environments, particularly in the oil and gas industry. They are typically made from soft iron, low carbon steel, or stainless steel.

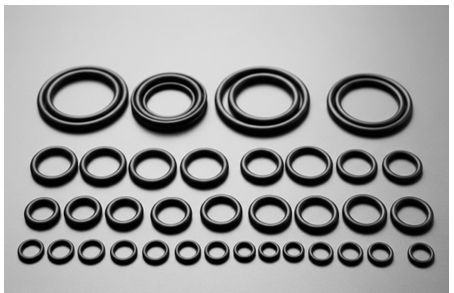

O-Rings
While technically a type of gasket, O-rings are specifically designed to be seated in a groove and compressed during assembly to create a seal. They are widely used in dynamic and static applications.
Gasket Materials
The material of a gasket is critical to its performance. Here are some common materials and their characteristics:
● Rubber (e.g., Neoprene, Nitrile, EPDM) Offers good flexibility and sealing properties, suitable for a range of temperatures and mild chemicals.
● Cork: Excellent for sealing against oils and solvents at lower pressures.
● PTFE (Polytetrafluoroethylene): Known for its chemical resistance and ability to withstand high temperatures.
● Graphite: Provides excellent high-temperature and chemical resistance, often used in critical sealing applications.
● Metals (e.g., Stainless Steel, Carbon Steel): Used in high-pressure and high-temperature applications, especially in spiral wound and RTJ gaskets.
Installation and Maintenance Proper installation and regular maintenance are crucial for the longevity and effectiveness of gaskets. Incorrect installation can lead to premature failure and leakage.
