Shaft Repair Sleeves Product Information
Shaft Repair Sleeves are thin-walled, non-wearing sleeves designed to repair damaged shafts without the need for disassembly or extensive machining. These shaft repair sleeves offer a fast, effective, and economical solution for restoring a sealing surface to its original condition.
Key Features and Benefits
Shaft Repair Sleeves are essential for maintaining equipment efficiency and extending the service life of rotating machinery.

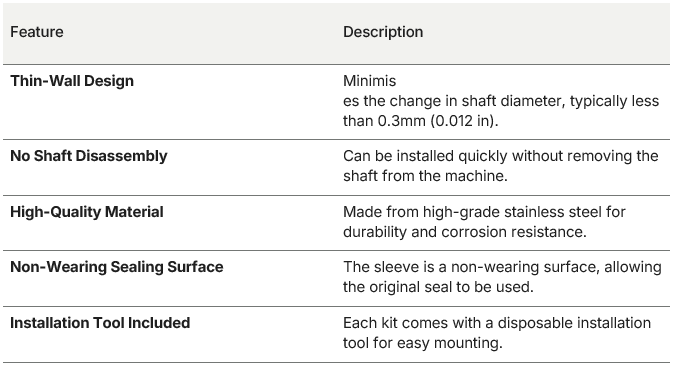

Features:
Benefits
- Cost-Effective Repair: Avoids the high cost and downtime associated with replacing or welding a worn shaft.
- Minimal Downtime: Installation is fast, allowing equipment to return to service quickly.
- Original Seal Size: Since the wall is so thin, the original seal size can be reused, simplifying parts inventory.
- Improved Sealing Performance: Provides an optimal counter-surface for the radial shaft seal lip.
- Durability: Offers excellent corrosion and wear resistance.

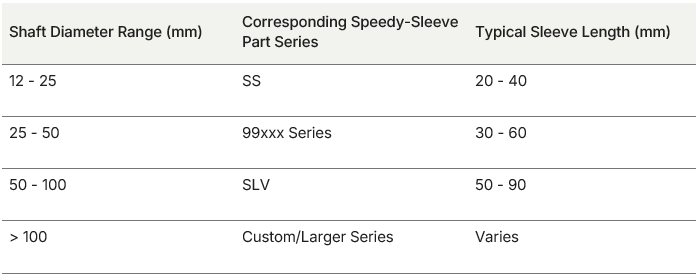

Product Specifications
Shaft Repair Sleeves are available in a wide range of sizes to suit various shaft diameters and applications.
Installation Overview
Installation is straightforward and typically takes only a few minutes with the provided tool.
- Preparation: Clean the damaged shaft area. Minor burrs should be smoothed.
- Mounting: Place the sleeve (with the mounting flange facing outward) onto the shaft, covering the worn area.
- Driving: Use the supplied plastic installation tool and a hammer to gently tap the sleeve into position.
- Finishing: Once the sleeve is correctly seated, carefully remove the mounting flange by cutting or tearing it off.
